Custom LED Heat SinkDesign & ManufacturingExpert

Precision engineered thermal solutions with 25 advanced 5-axis CNC centers, delivering exceptional cooling performance for 1W to 100W LED applications.


1.2℃/W
Thermal Resistance

±0.02mm
Precision Tolerance
 Get Custom Quote
Premium Quality

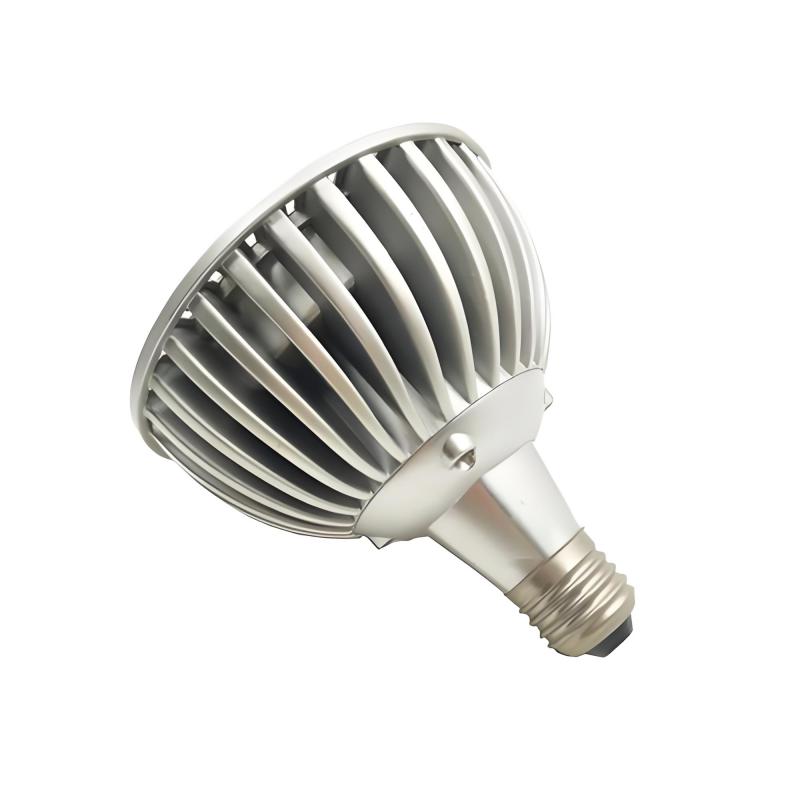

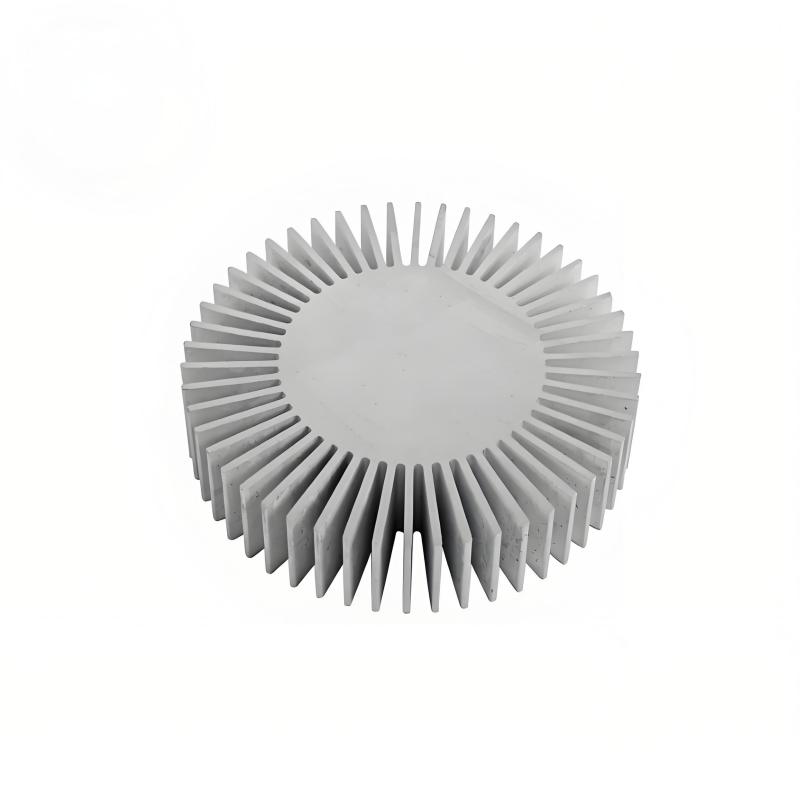

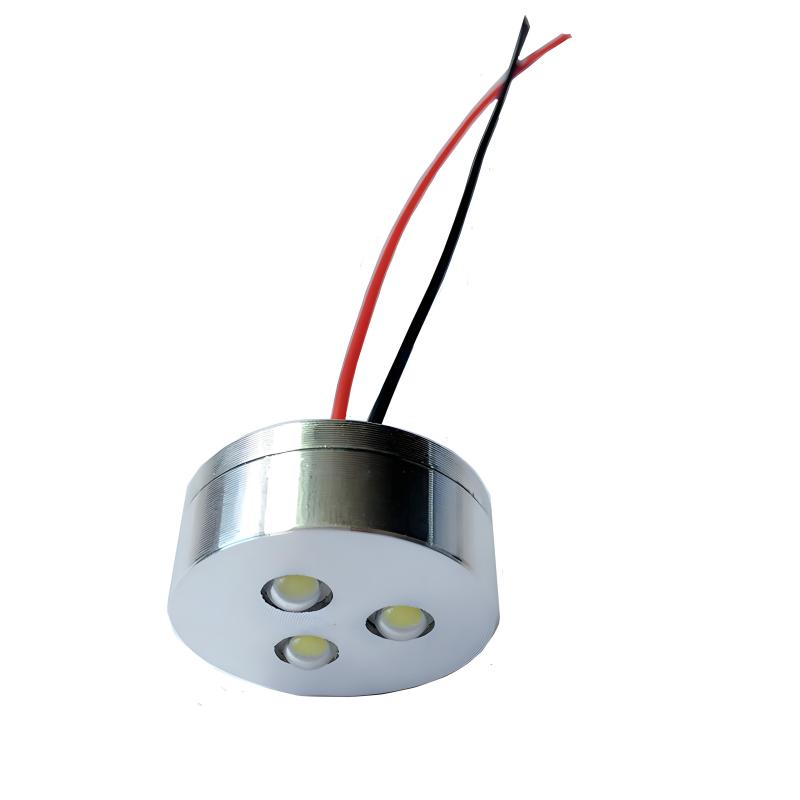

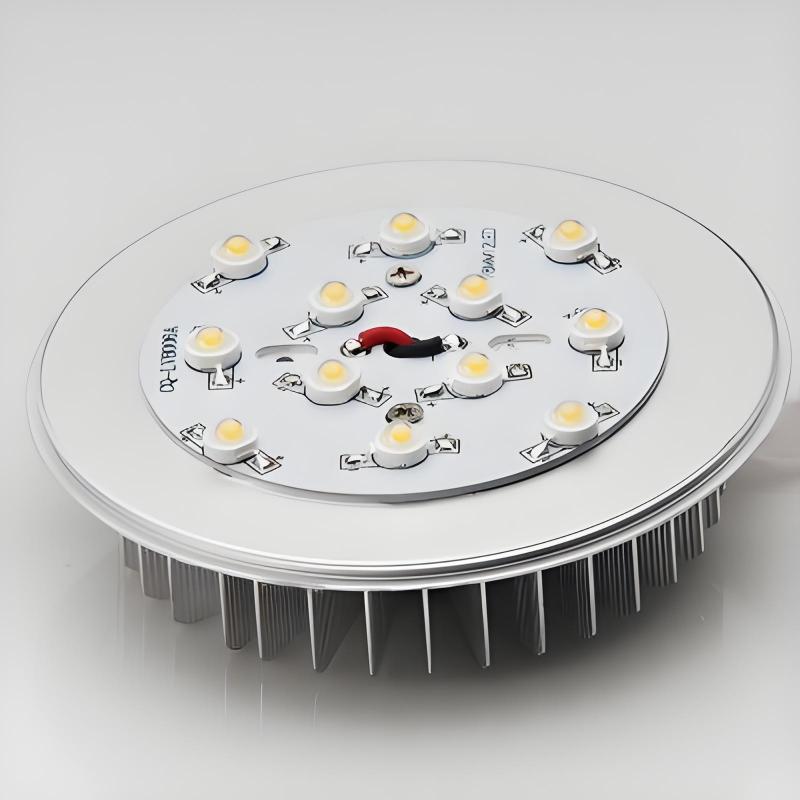

Custom Precision LED Heat Sink

Precision Engineered Heat Sinks

Advanced aluminum alloy construction with optimized fin geometry



LED Cooling Services

Comprehensive Heat Dissipation Solutions

Precionn focuses on research and development as well as manufacturing heat sink in LED, providing one-stop heat dissipation solutions from design to production, to help high-power LED products achieve long lifespan, low light attenuation, and safe and stable operation.

Our heat sinks are available in full power coverage of1W/3W/10W/50W/100WLED lamp heat sink, meeting the requirements of various scenarios such as household lighting, commercial lamps, industrial searchlights, etc.


Household
1W-10W Solutions

Commercial
10W-50W Systems

Industrial
50W-100W Applications

Searchlights
High-Power Solutions

Why Precision Thermal Management Matters?

 Critical Heat Challenge

LEDs convert70% of energy into heat—without proper cooling, junction temperatures exceeding 150°C cause30% lumen decaywithin 3 years and shorten lifespan from 50,000h to <10,000h.



Lumen Depreciation

Thermal resistance as low as1.2℃/Wstabilizes junction temperature.

Without proper cooling:
• 30% light output loss in 3 years
• Junction temp >150°C


Design Compromise

Aluminum-copper composite materials balance weight and heat dissipation efficiency.

Optimized balance:
• 40% weight reduction vs. copper
• 85% thermal efficiency retained


Corrosion Risks

Anodized surfaces pass 1,000+ hour salt spray tests for coastal projects.

Protection features:
• Marine-grade anodizing
• 1000h+ salt spray resistance

Industry Insight:
Heat dissipation design flaws account for27%of total LED after-sales costs.

Our LED Heat Sink Core Advantages



Lightweight Design

Advanced aluminum alloy construction reduces weight by 40% compared to traditional copper heat sinks while maintaining superior thermal performance.

Weight Reduction: 40%
Aluminum alloy vs copper


High Precision

25 advanced 5-axis CNC machining centers ensure ±0.02mm tolerance precision with Ra0.8μm surface finish for optimal thermal contact.

Tolerance: ±0.02mm
Surface: Ra0.8μm


Excellent Thermal Conductivity

Optimized fin geometry and advanced materials achieve thermal resistance as low as 1.2℃/W for superior heat dissipation performance.

Thermal Resistance: 1.2℃/W
Industry leading performance

LED Heat Sink Design Guide by Power Range

1W-3W
Residential LED
Compact heat sinks with natural convection cooling
5W-10W
Commercial LED
Enhanced fin density for improved heat transfer
20W-50W
Industrial LED

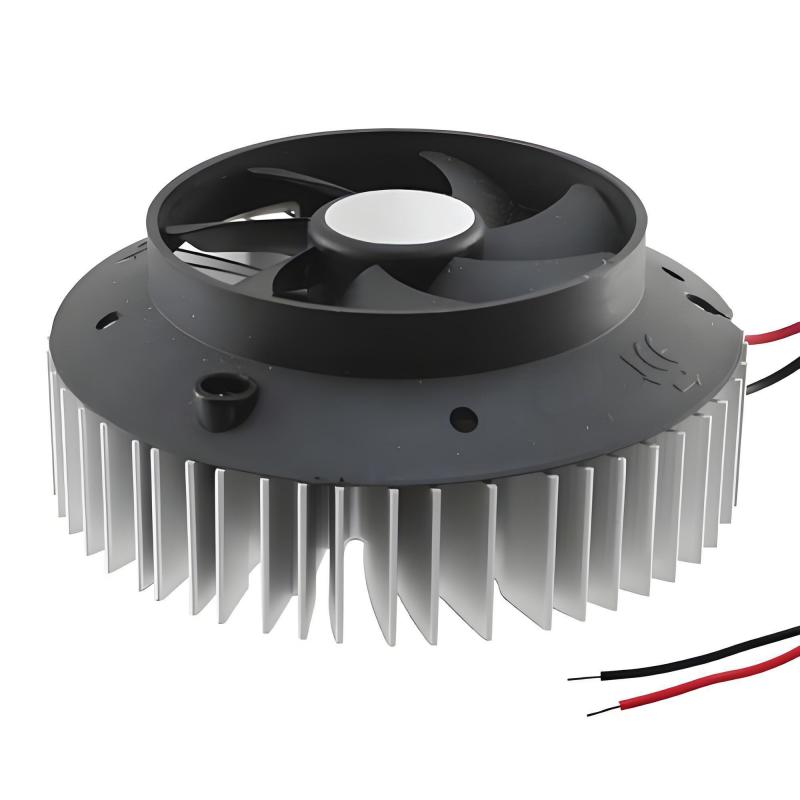

Advanced geometries with forced air cooling

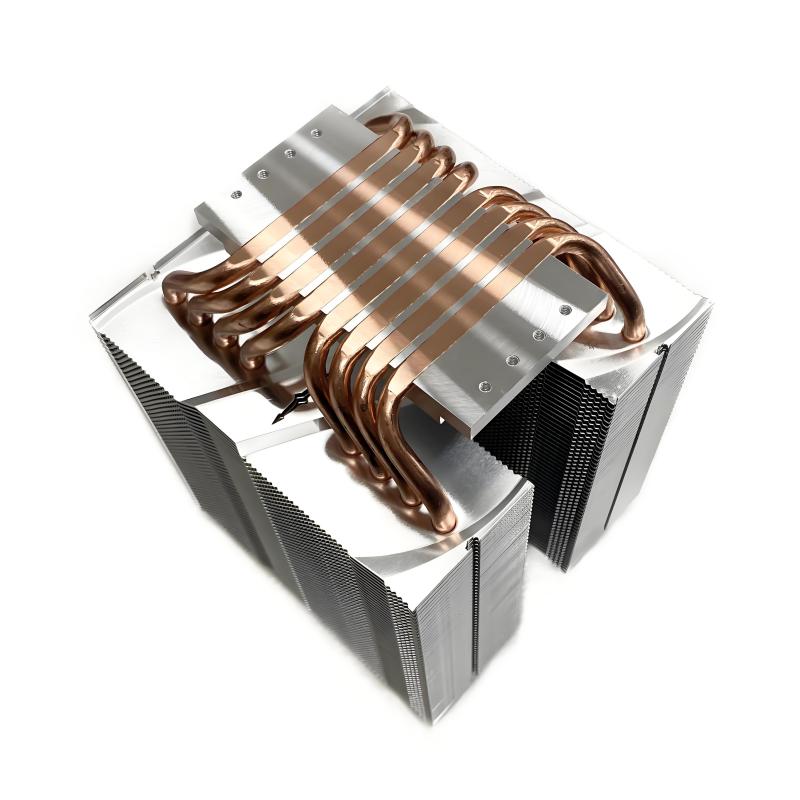

50W-100W
High-Power LED
Specialized designs for maximum heat dissipation

Surface Treatment Options

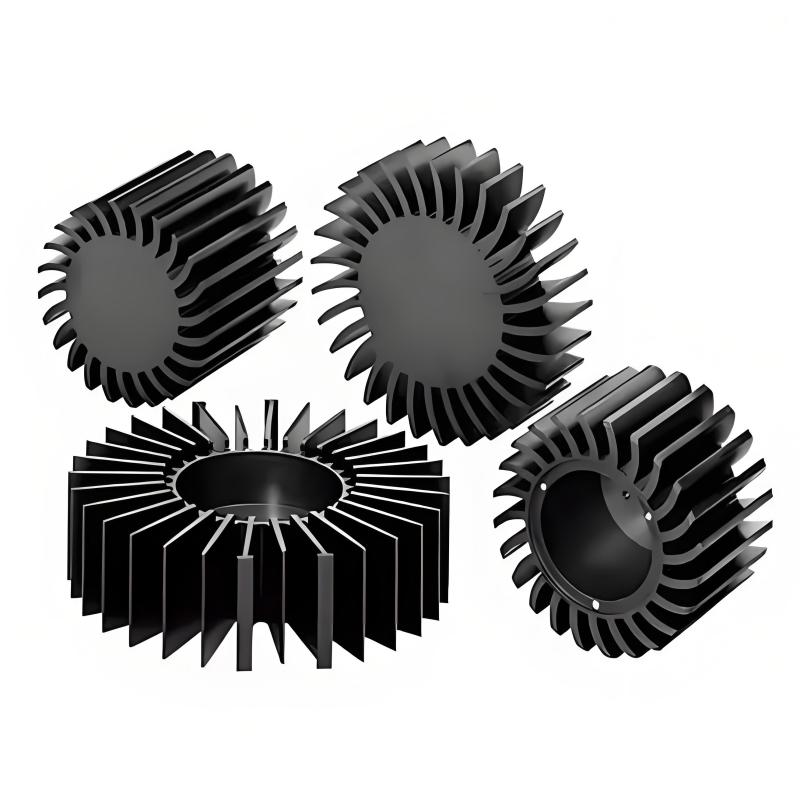

Anodized Finish

Type II and Type III anodizing provides superior corrosion resistance and enhanced thermal emissivity.

  •  1000+ hour salt spray resistance
  •  Enhanced thermal radiation
  •  Multiple color options


Sandblasting

Controlled surface roughening increases surface area for improved heat transfer and paint adhesion.

  •  Uniform matte finish
  •  Increased surface area
  •  Better paint adhesion


Nickel Plating

Electroless nickel plating provides excellent corrosion protection and uniform coating thickness.

  •  Superior corrosion resistance
  •  Uniform thickness control
  •  Enhanced durability

Precionn Manufacturing Excellence

State-of-the-art production facilities equipped with advanced machinery and automation systems for precision LED heat sink manufacturing.

Advanced Equipment Portfolio

25
Five-Axis CNC Machining Centers
Imported high-precision centers for complex geometries and strict tolerance requirements
40
High-Speed Precision CNC Milling Centers
Various specifications for efficient, precise component processing
30
CNC Turning Centers
CNC lathes and turn-mill compound machines for rotational components
15
Precision Grinding Machines
Surface, cylindrical, and coordinate grinders for ultra-high precision finishing

Quality & Automation Systems

8
3D Coordinate Measuring Machines (CMM)
Zeiss, Hexagon brands with advanced optical inspection equipment
5
Flexible Automated Production Lines
Complete automation from loading to unloading, significantly improving efficiency

Additional Support Equipment

 Wire EDM Machines
 EDM Machines
 Laser Marking Systems
 Surface Treatment Equipment
 Industrial Robots
 Quality Control Systems

Technical Parameters & Specifications

Precision Tolerances

Dimensional Tolerance±0.02mm
Surface RoughnessRa 0.8μm
Flatness0.01mm/100mm
Parallelism0.005mm
Perpendicularity0.01mm

Thermal Performance

Thermal Resistance1.2℃/W (min)
Thermal Conductivity205 W/m·K
Operating Temperature-40°C to +85°C
Junction Temperature<85°C
Thermal Cycle Life50,000+ hours

Material Specifications

Aluminum Alloy 6061-T6

Thermal Conductivity: 205 W/m·K
Density: 2.70 g/cm³
Excellent machinability

Aluminum Alloy 6063-T5

Thermal Conductivity: 201 W/m·K
Density: 2.69 g/cm³
Ideal for extrusion

Copper C101

Thermal Conductivity: 401 W/m·K
Density: 8.96 g/cm³
Maximum heat transfer

Client Testimonials


5.0/5

“Precionn’s LED heat sinks exceeded our expectations. The thermal performance improved our LED lifespan by 40%, and their precision manufacturing ensures consistent quality across all units.”

JM
John Martinez
Engineering Director, TechLED Solutions

5.0/5

“Outstanding quality and service. The custom heat sink design perfectly matched our automotive LED requirements. Precionn’s attention to detail and technical expertise is impressive.”

SC
Sarah Chen
Lead Engineer, AutoBright Systems

5.0/5

“Precionn delivered exceptional results for our high-power industrial lighting project. Their thermal management expertise and manufacturing capabilities are world-class.”

RB
Robert Brown
VP Operations, Industrial Illumination Corp

Frequently Asked Questions

What are the minimum order quantities for custom LED heat sinks?


Our minimum order quantity typically starts at100 piecesfor custom designs. However, we can accommodate smaller quantities for prototyping and testing purposes. Contact our sales team for specific requirements and pricing.

How do you ensure consistent thermal performance across production batches?


We employ rigorous quality control processes including3D coordinate measuring machines (CMM)from Zeiss and Hexagon, thermal testing protocols, and statistical process control to ensure consistent performance across all production batches.

Can you provide thermal simulation and design optimization services?


Yes, our engineering team provides comprehensivethermal simulation using advanced CFD software, design optimization recommendations, and prototype testing to ensure optimal thermal performance for your specific LED applications.

What surface treatments are recommended for outdoor LED applications?


For outdoor applications, we recommendType III anodizingwith enhanced corrosion resistance. This treatment passes 1000+ hour salt spray tests and provides excellent thermal emissivity while protecting against environmental factors.

What is your typical lead time for custom heat sink projects?


Lead times vary based on complexity and quantity. Typically,prototype samples take 7-10 days, tooling development requires 2-3 weeks, and production runs are completed within 3-4 weeks after approval. Rush orders can be accommodated with expedited processing.

Do you provide certification documentation for your heat sinks?


Yes, we provide complete documentation includingmaterial certificates, dimensional inspection reports, thermal performance data, and compliance certificates for relevant industry standards such as UL, CE, and RoHS as required.

Ready to Optimize Your LED Thermal Management?

Partner with Precionn for precision-engineered LED heat sink solutions. Our expert team is ready to transform your thermal challenges into competitive advantages.
