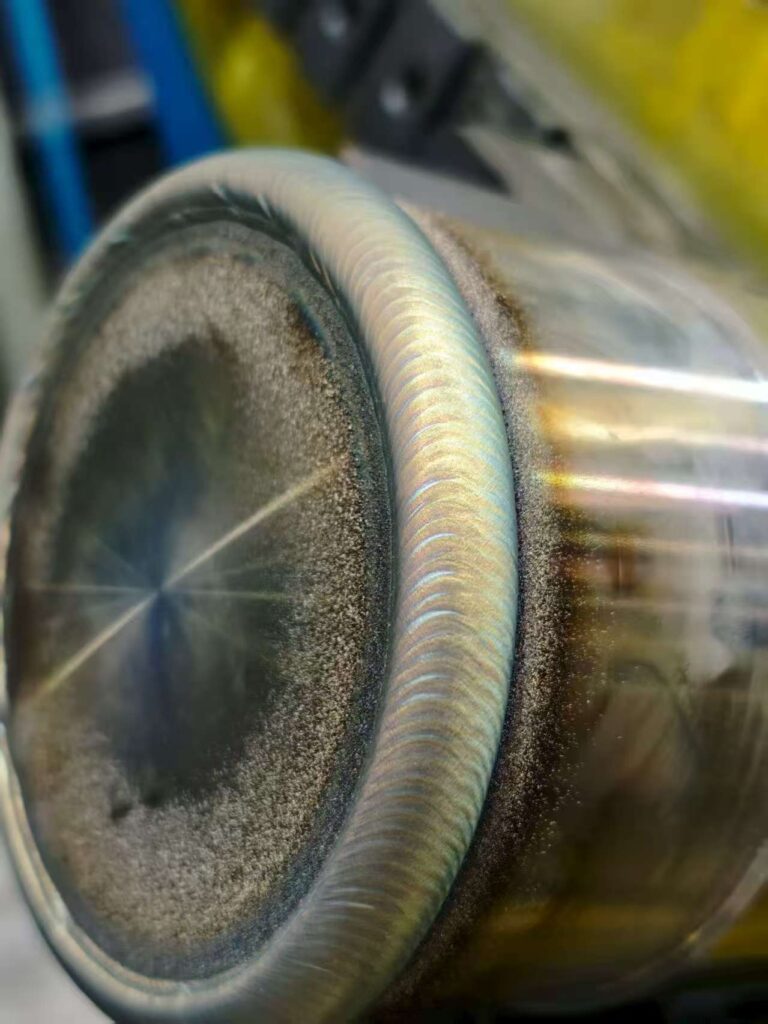

What is Stellite welding?
Stellite welding refers to a class of overlay, cladding or fusion weld processes that deposit a layer of Stellite alloy (a cobalt based alloy) onto a substrate or base metal. The aim is to create a surface zone with superior wear, corrosion, or heat resistance compared to the base.

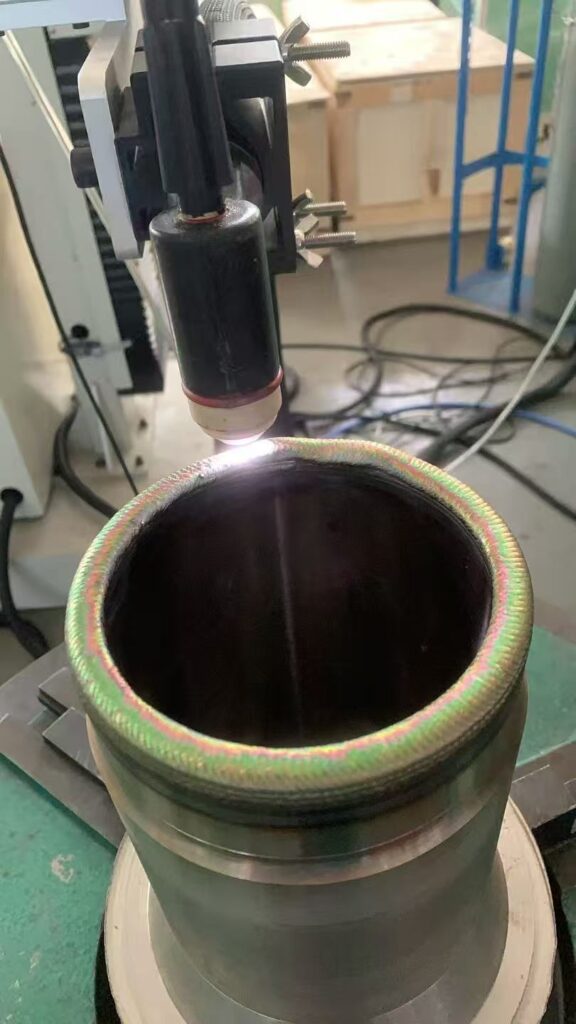

In practice, Stellite welding is not a single fixed process; rather, it is a category of techniques (such as TIG, MIG, plasma transferred arc (PTA), laser cladding, thermal spraying, or manual arc methods) used to deposit Stellite alloy material. The deposited layer must metallurgically bond with the substrate, maintain integrity under load, and deliver the enhanced surface properties desired.
Key aspects:
A melting and deposition of Stellite alloy (in wire, rod, or powder form) into or onto a prepared surface.
Formation of a metallurgical bond between the overlay and substrate, with controlled dilution (mixing) so that desirable alloy properties are retained.
Thermal management (preheat, interpass temperature, cooling rates) to avoid cracking, distortion, or undesirable microstructures.
Post treatment or finishing processes (grinding, machining, heat treatment) to achieve final dimensions, surface finish, or stress relief.
By applying this methodology, worn or lower grade surfaces become reinforced with a durable, wear resistant L1 layer without full replacement of the component.
What are the Stellite welding materials?
Selecting proper materials and supporting consumables is critical for successful Stellite overlay welding. Here is a breakdown of the essential materials involved.
Core Stellite alloy filler materials
The “Stellite” brand (or generic cobalt based alloy overlays) includes a family of alloys optimized for different wear, corrosion, and temperature conditions. Common alloy grades include:
Stellite 6 — perhaps the most widely used general overlay alloy, with balanced wear resistance and toughness.
Stellite 12 — higher carbon and carbide content, suited for aggressive abrasion environments.
Stellite 1, 3, 4, 21, 25, etc. — variants tailored to specific wear, corrosion or temperature needs.
These alloys typically contain cobalt (Co) as base, chromium (Cr), tungsten (W) or molybdenum (Mo), carbon (C), and sometimes nickel (Ni), iron (Fe), silicon (Si), etc. The microstructure often includes a matrix (cobalt solid solution) with dispersed carbides (e.g. Cr₇C₃, WC) that provide hardness and wear resistance.
Forms of Stellite overlay filler:

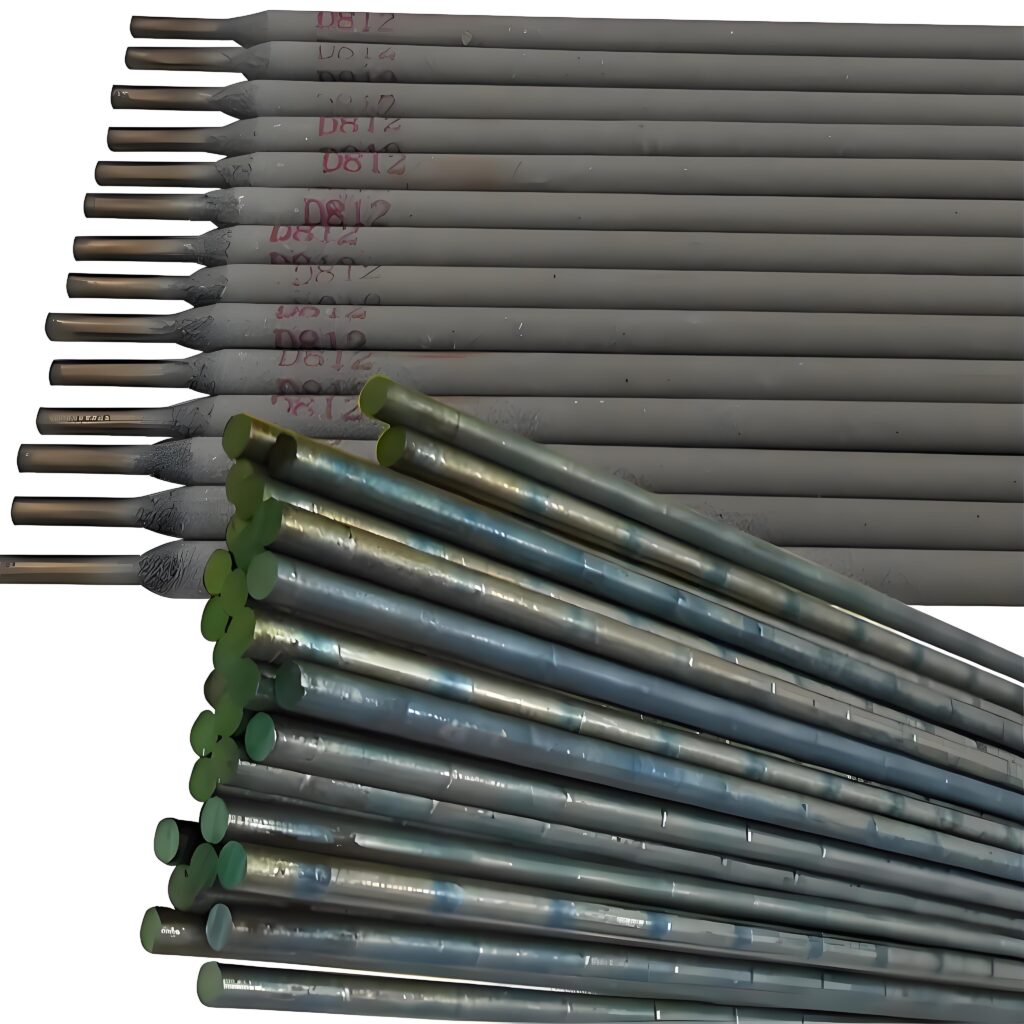

Solid wire or rod: for arc or TIG/MIG style processes.
Cored wire: encapsulated filler that may contain alloy powders and flux.
Powder: for laser cladding, PTA, plasma spray, or powder-fed systems.
Pre placed tape or strip: overlay preforms that are fused in place.
Choice depends on the overlay process, desired deposition rate, dilution control, and geometry.
Substrate / base materials
Stellite overlays can be applied to many base metals, including:
Carbon steel
Low alloy steels
Stainless steels
Cast iron or ductile iron
Nickel alloys or superalloys
Tool steels or other alloys
The compatibility of thermal expansion, melting point, and metallurgical behavior must be considered.
Supporting consumables and materials
To support a successful overlay, additional materials are needed:
Shielding or inert gases
Typically argon (Ar), helium (He), or mixtures, sometimes with small additions (e.g. hydrogen) to improve weld pool stability or reduce oxidation.
Flux / slag / coating for wire or powder
Some overlays use flux cored wire or flux coverings to facilitate arc stability, deoxidation, or slag control.
Preheat, interpass, and post heat materials
Thermal control may require heating elements, insulated blankets, or furnace support to slow cooling or reduce thermal stress.
Surface preparation materials
Grinding wheels, sandblasting media, chemical cleaners, degreasers, etc. to ensure a clean, oxide free bonding surface.
Heat treatment or stress relief media
Furnace setups or local heaters for tempering, annealing or stress relief after welding.
In sum, the “materials” of Stellite overlay welding form an integrated system: the alloy filler, substrate, and the ancillary consumables and treatments.
Why use Stellite welding?
Engineers choose Stellite overlay welding when the cost and challenges are justified by long-term performance gains. Below are the main reasons and considerations.
Performance advantages driving selection
Superior wear resistance
The overlay often endures abrasion, sliding wear, impact, erosive wear or micro cutting far better than conventional metal surfaces.
High temperature stability
The cobalt matrix plus carbides help overlays maintain hardness and structural stability at elevated temperatures, resisting softening.
Corrosion and oxidation resistance
Chromium and other alloying elements help the overlay resist chemical attack, oxidation, or scaling in harsh environments.
Metallurgical bonding and integrality
A well-designed overlay fuses metallurgically with the base, creating a durable composite assembly rather than a mechanical bond.
Controlled dilution / retention of overlay chemistry
Well-managed overlay procedures limit dilution from the base metal, preserving the intended alloy properties in the clad layer.
Repair and extend life
Worn or damaged parts may be refurbished with overlays, reducing the need for full replacement, saving time and cost.
Engineering / economic considerations
Cost vs replacement: Overlay may cost more upfront (filler, labor, process), but often yields savings by avoiding downtime, part replacement, or frequent maintenance.
Feasibility: Parts too large or complex might not be practical for overlay if heat or distortion cannot be managed.
Design flexibility: Parts can be designed with minimal allowance for wear, knowing overlays will provide reinforcement later.

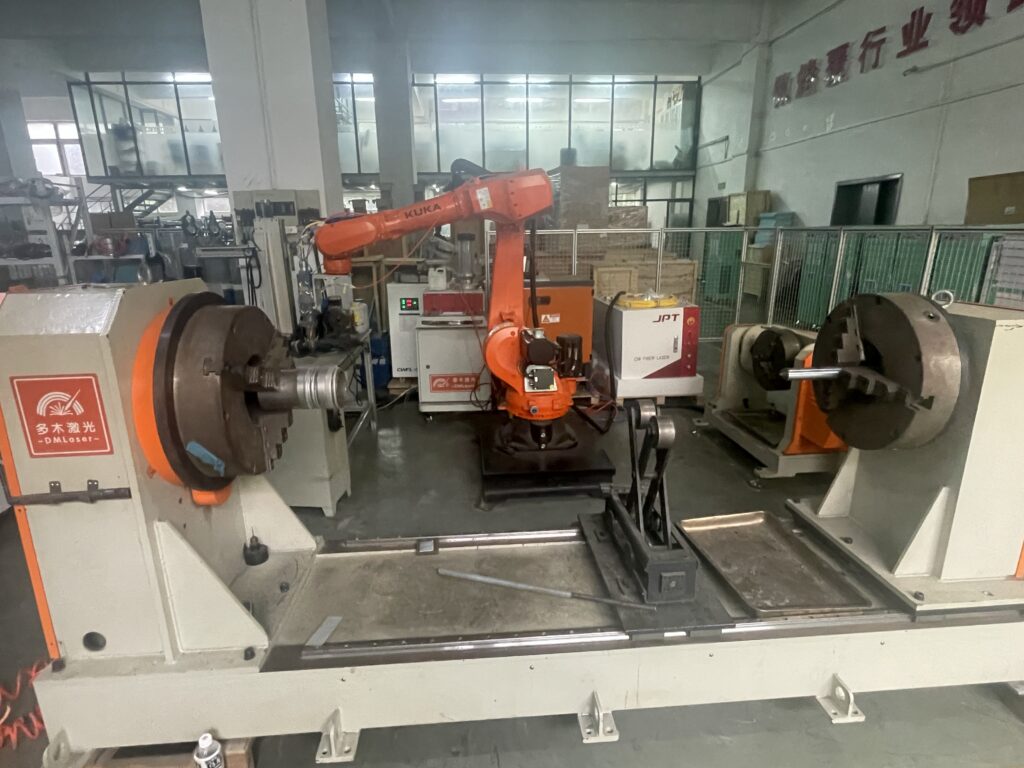

Compatibility with automation: Laser cladding or robotic overlay techniques can deliver high repeatability and reduce manual labor.
Life-cycle impact: Reduced frequency of part change or failure leads to lower life-cycle cost and improved equipment availability.
In effect, using Stellite overlay welding is a strategic decision: trade higher initial overlay cost for longer service life, reduced maintenance, and better performance in harsh environments.
Application of Stellite Welding
This section explores real-world use cases where Stellite overlay welding is especially valuable, and what drives its adoption in those contexts.
Industrial sectors and use cases

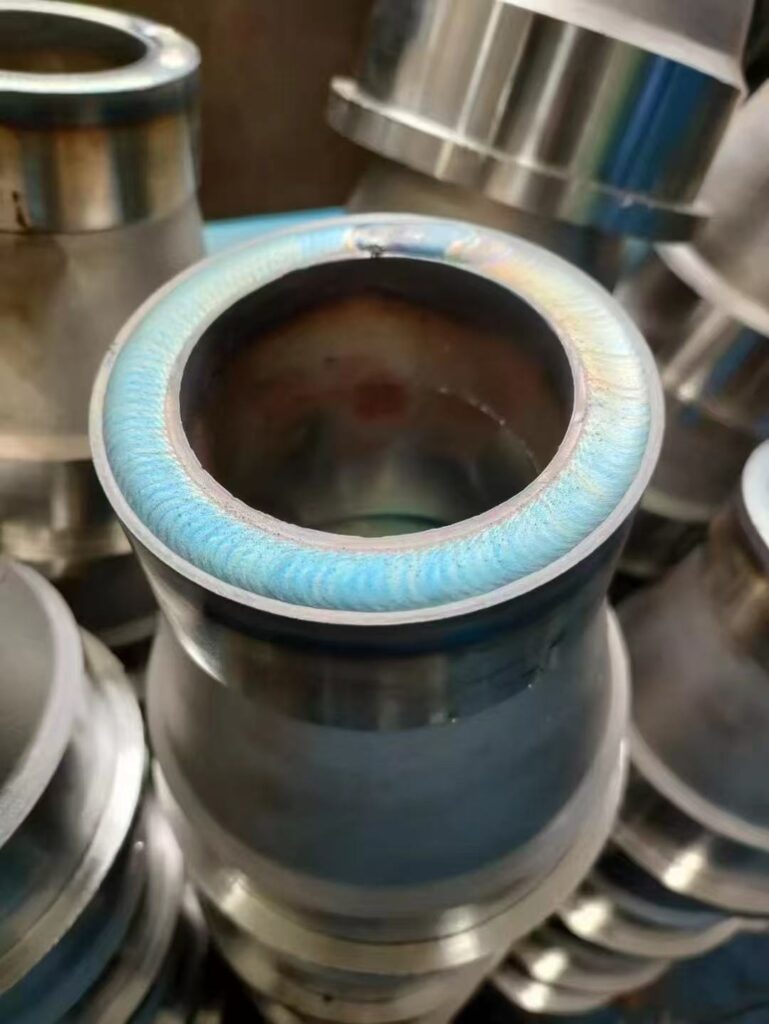

Valves and seats
In chemical, power, oil & gas, and petrochemical plants, valve seats and sealing surfaces suffer wear, erosion and corrosion. Overlays help ensure tighter sealing, longer intervals between maintenance, and reduced leakage risk.
Pump components
Pump shafts, casings, impellers, bushings and seal surfaces endure abrasive or corrosive fluids. Stellite overlays help resist erosion and abrasion from particles, prolonging pump lifespan.
Cutting tools and blades
For high wear edges—like saw blades, shearing edges, slitting knives, or machine tools—overlay can protect edges and reduce the rate of tool change.
Die, punch, mold surfaces
In stamping, forging, injection molding, or extrusion, overlay on die surfaces or inserts can resist wear, galling, and abrasion, improving mold life and reducing downtime.
Gears, shafts, bearings
High load sliding or rolling parts may benefit from overlays on contact surfaces or bearing journals where conventional carburizing or hardening may not suffice.
Mining, earth moving, crushing equipment
Components such as jaws, crushers, hammers, liners, wear plates or buckets face intense abrasive wear. Overlays boost durability.
Heat‐exposed parts in turbines or burners
At certain interface zones, overlays may add oxidation resistance or reduce hot corrosion in gas turbines or burner hardware.

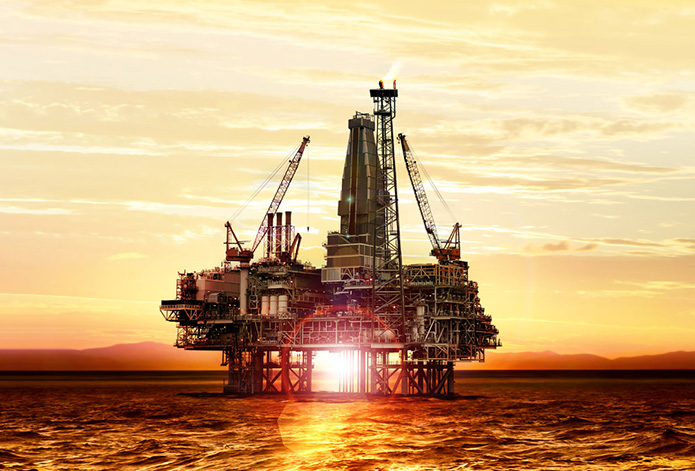

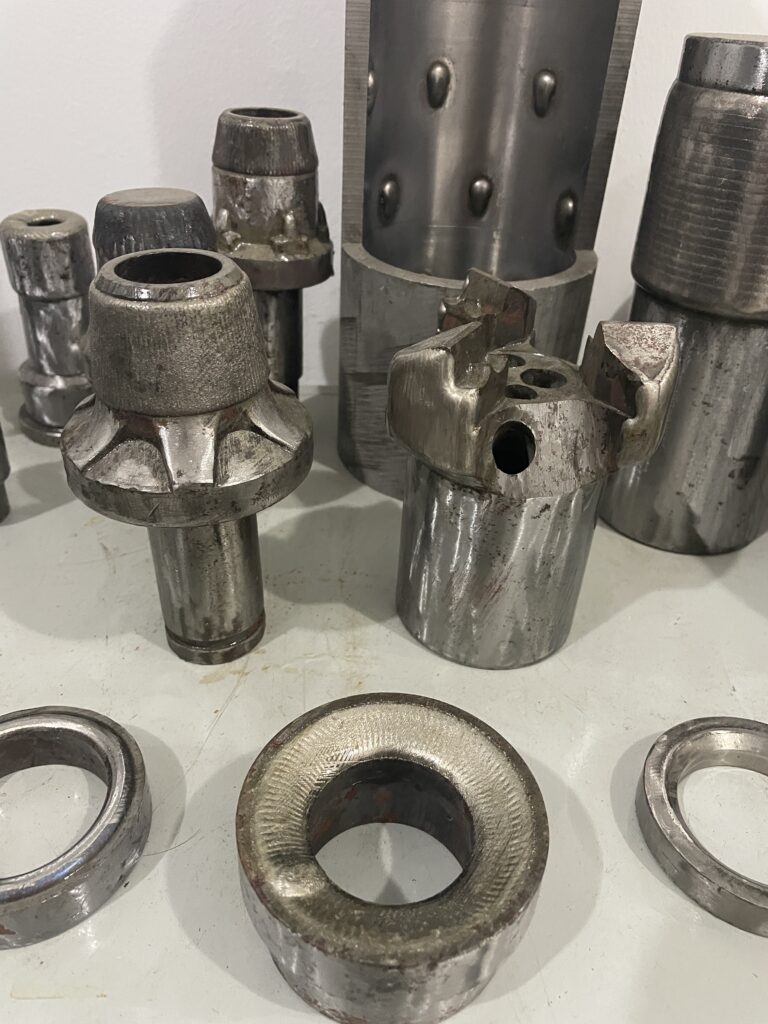

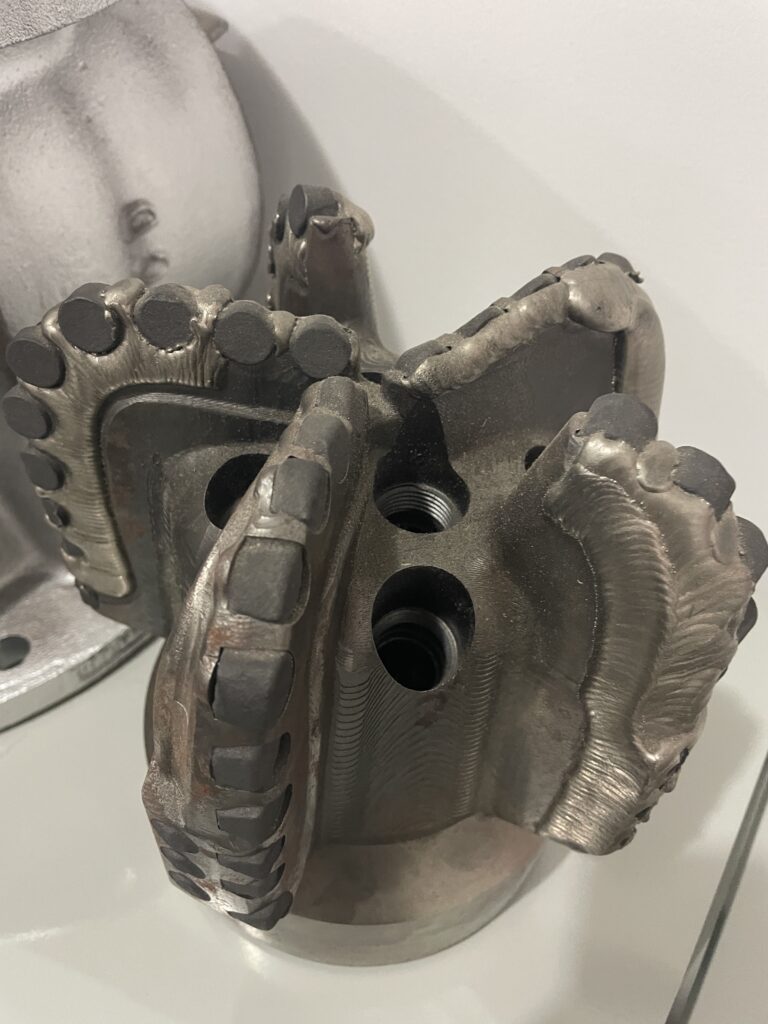

oil industry
Consumable parts in the petroleum industry: valves, hydraulic rods, valve cores, hydraulic cylinders, gates, drill bits, etc. Plasma cladding machines can effectively repair petroleum equipment, resist wear and corrosion, and extend the service life of machinery.
agricultural machinery

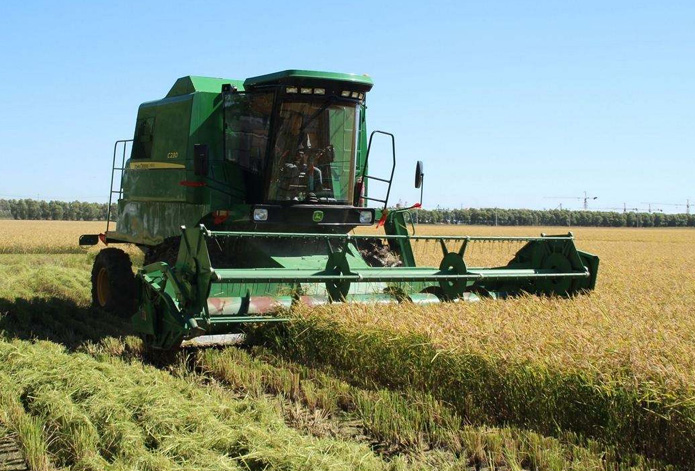

Agricultural machinery parts that are prone to wear: returning field tools, rotary tillage tools, crushing tools, etc., can be effectively repaired using a plasma surfacing machine, making them wear-resistant and corrosion-resistant, thus extending the service life of the machinery.
mining industry

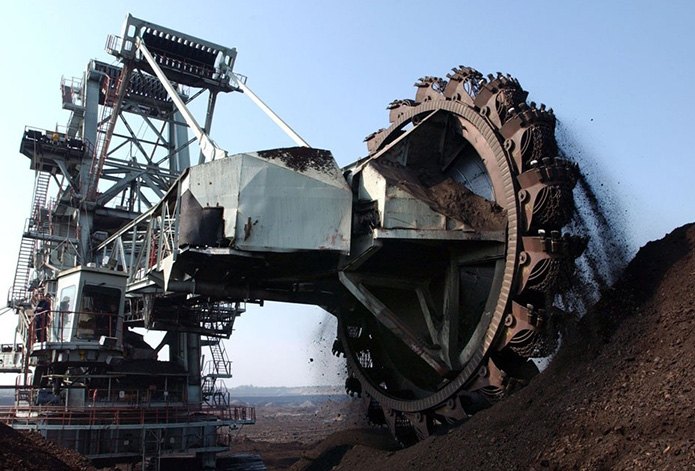

The easily worn parts of mining machinery: pick teeth, knife teeth, shovel teeth, wear-resistant liners, middle grooves, tunnel boring machine drums, road teeth, etc., can be effectively repaired by using plasma surfacing machines, making them wear-resistant and corrosion-resistant, and extending the service life of the machinery.
Advantages of Stellite Welding
Beyond the basic “why use it,” here is a deeper breakdown of the advantages (and caveats) that engineers evaluate.
Key advantages
Extremely enhanced wear life
Under abrasive or mixed wear, overlay surfaces can last multiple times longer than untreated metals.
Retention of mechanical substrate strength
Since only the surface is modified, the core material can remain chosen for toughness or shock absorption, rather than hardness.
Localized reinforcement
Only critical surfaces need overlay, saving weight, cost, and keeping other areas unchanged.
Restoration and upgrade in one step
Worn parts can be built back to dimension and simultaneously given better wear protection.
Dimensional control and finishing flexibility
The overlay thickness can be controlled, and post-grinding or machining refines the final geometry.
Customization
Using different overlays and techniques, surfaces can be tailored for sliding, erosive, corrosive, or mixed wear regimes.
Scalability and automation
Modern overlay processes integrate with robot arms, CNC controls, or lasers for repeatable, high throughput manufacturing.
Considerations and trade-offs
Higher upfront cost of materials and process
Cobalt alloys and precision overlay methods are more expensive per kilogram than common steels.
Crack risk and residual stress
Overlays must manage stresses, heat, and dilution; improper execution can cause cracks, delamination, or distortions.
Hardness and machining difficulty
The overlay is harder than many base metals, making subsequent cutting, grinding or finishing more challenging.
Dilution management is critical
If overlay melts too much base metal into it, the intended alloy composition and performance may degrade.
Thermal control demands
Preheating, interpass control, cooling rates, and post-heat can be critical, especially on thicker overlays or large parts.
Process complexity
Angular surfaces, complex shapes or masked areas may create challenges in tool access, shielding, or energy input.
In short, the advantages of a well executed overlay can outweigh the costs significantly—but only if the process is planned, controlled, and executed properly.
How to inspect the quality of the weld after Stellite welding
After overlay welding is complete, rigorous inspection is critical. A well laid overlay can still fail prematurely if defects, cracks, porosity, delamination or bonding issues exist. Below are recommended inspection methods and key points.
Visual (Macroscopic) Inspection
This is the first, basic step and reveals obvious surface defects:
Look for cracks, spalling, delamination, undercuts, overlaps, or unbonded edges.
Look for surface porosity, blowholes, spatters, inclusions, or slag.
Check transition zones—overlay to substrate—for abrupt steps, grooves, or evidence of poor fusion.
Ensure overlap zones are consistent and not overbuilt in some areas.
Observe surface finish and uniformity of appearance (colour, oxidation, texture).
Though visual inspection is limited to surface defects, it is essential as a quick screening step.
Non-Destructive Testing (NDT)
Because many flaws lie below the surface, NDT techniques are vital:

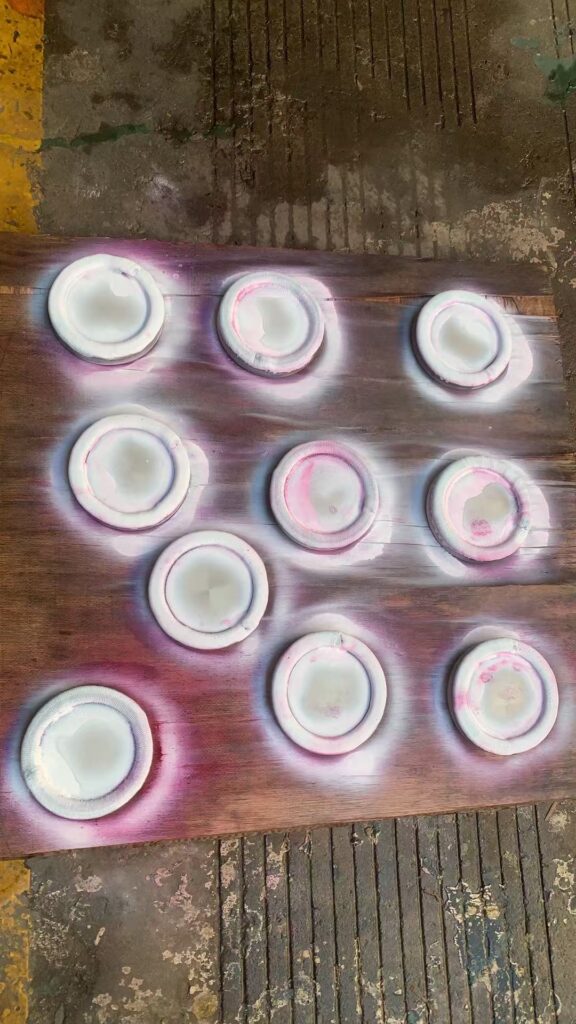

Liquid Penetrant Testing (PT / LPI)
Useful for detecting surface cracks, fissures or fine defects. The procedure involves applying penetrant, letting it seep into flaws, removing excess, and applying developer. Defects show dye lines.
Magnetic Particle Testing (MT / MPI)
Effective when the substrate or overlay is ferromagnetic. Under magnetic field, iron particles cluster at discontinuities (cracks, voids), making them visible.
Ultrasonic Testing (UT)
High frequency sound waves detect internal discontinuities, interface bonding issues, delamination, porosity and lack of fusion in the overlay-substrate junction.
Radiographic Testing (RT / X-ray or γ ray)
Good for detecting internal voids, inclusions, or fusion defects. Limited by geometry and thickness; overlapping parts or thick overlays may complicate interpretation.
Eddy Current Testing (ECT)
Sensitive to near-surface defects in conductive material. Useful for crack detection, thinning, or delamination.
Phased Array / Advanced UT Methods
Provide higher resolution scanning for complex geometries; good for overlay-substrate interface inspection.
Destructive / Metallographic Methods (for samples)
To validate overlay integrity, destructive tests on sample coupons may include:
Cross-sectional cutting and polishing
Examine the overlay, dilution zone, substrate interface, microstructure, cracks, porosity, inclusion distribution, and fusion zone.
Hardness mapping
Measure hardness from surface through overlay and into substrate to check gradient, consistency, and whether expected hardness is achieved.
Microstructural examination (optical / SEM / EDS)
Confirm correct phases, carbide distribution, alloy homogeneity, absence of defects or segregation.
Adhesion / bond tests
Push-off or bend tests may reveal bonding strength or delamination tendencies.
Chemical composition / spectroanalysis
Verify overlay material composition, check for contamination or dilution from the substrate.
Criteria and acceptance thresholds
When establishing inspection criteria, engineers often define:
Maximum allowable surface cracks, porosity, or inclusion sizes (e.g. ≤ 0.5 mm, ≤ X defects per area).
Minimum bonding area or fusion depth.
Acceptable dilution percentage (often ≤ 10–20 % depending on application).
Overlay thickness and uniformity tolerances.
Hardness ranges or minimum hardness required.
Geometric tolerances (flatness, profile) and permissible distortion.
No delamination or spalling under expected stresses.
Combining visual, nondestructive, and sample destructive analysis gives a comprehensive assessment of overlay quality.
conclusion
Stellite overlay welding is a well established technique for enhancing the surface durability of mechanical parts subjected to abrasive wear, erosion, corrosion or high temperature service. When properly executed—with the right alloy, substrate compatibility, process control, and inspection—it can greatly extend component service life and lower life cycle costs. Its advantages include excellent wear resistance, retention of substrate properties, repair capability, and adaptability to automated manufacturing.
However, success depends heavily on thoughtful design: choice of overlay alloy, dilution control, heat management, crack mitigation, and rigorous quality assurance. Overlays bring cost and complexity, but in demanding applications they often pay dividends in uptime, maintenance savings, and reliability.
Precionn, as a precision machining specialist, offers expertise not only in machining but also in surface enhancement techniques including Stellite overlay welding. With its capability to integrate material selection, overlay welding, finishing and inspection, Precionn is well positioned to deliver durable, high performance parts to international clients in challenging service environments.
